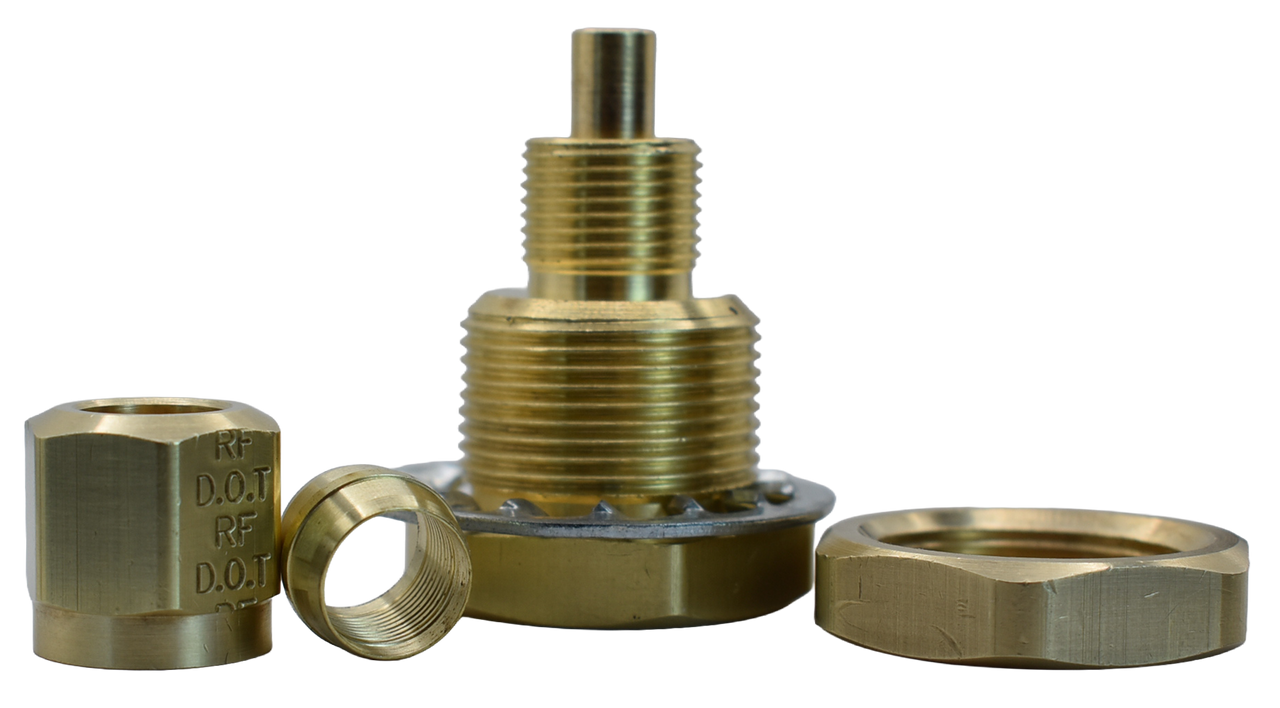

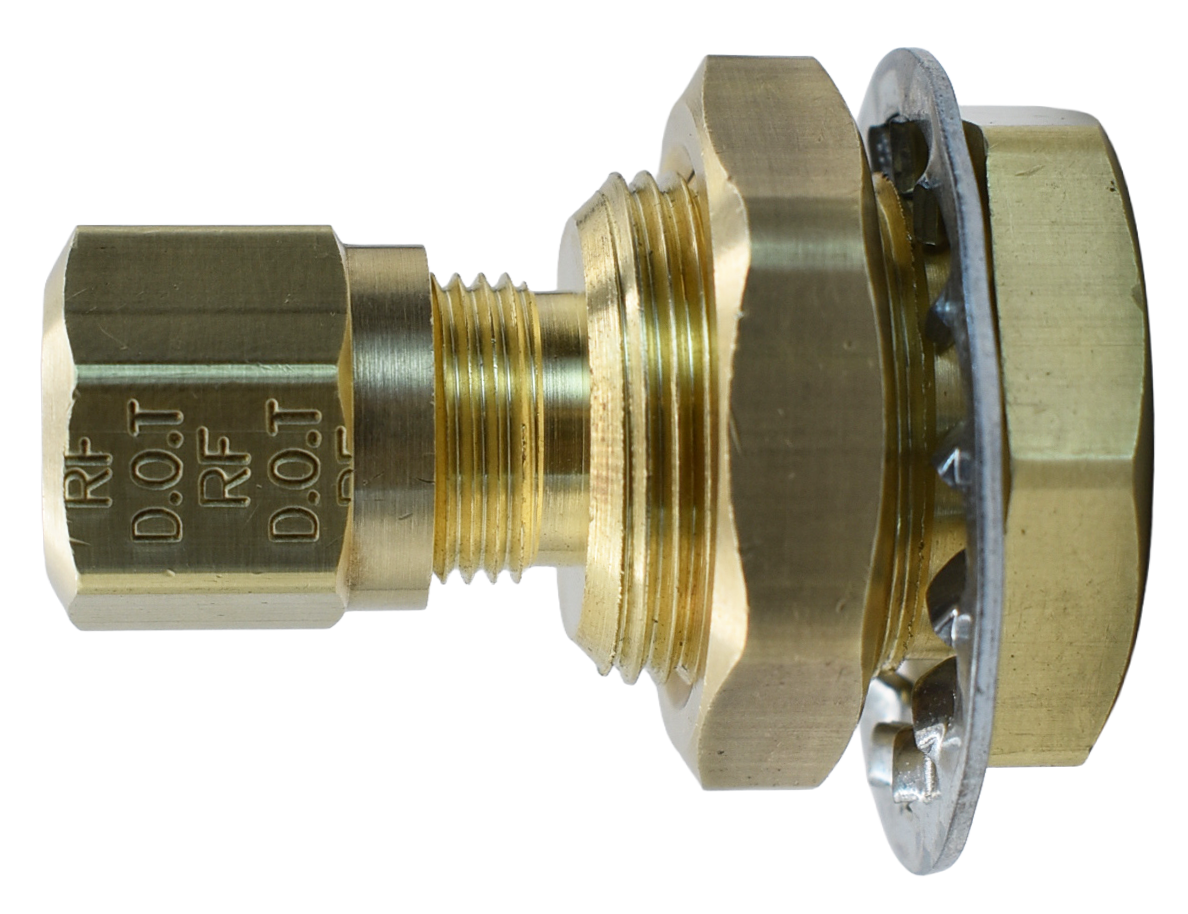

68NABH, Bulkhead Connector

Product Description

CONSTRUCTION

• CA360 Brass (Straights)
• CA360 Brass (Shapes)

APPLICATIONS

Transportation Air Brake Systems, Air Suspensions, Cabin Controls: Trucks, Trailers, RVs, Buses, Fire Trucks, & Rail.

RANGES

Temperature Range: -40° to 200° F.
Pressure Range: Up to 150 PSI

To Connect Fitting & Tubing:

1. Cut tubing squarely–using a tube cutter.
2. Make sure all fittings involved in the assembly are clean of burrs and debris.
3. Insert nylon air brake tubing firmly into the fitting until it bottoms out.
4. Tighten nut according to the chart listed below:

Pipe Thread Assembly:

Straight Fittings:
1. Hand Tighten
2. 1/8” to 1/2”: Wrench Tight 2 Full 360° Turns
1/2” & Above: 1 1/2” Full Turns
Shaped Fittings:
1. Hand Tighten
2. Wrench Tight 1 to 1 1⁄2” Full 360° Turns
*For NPTF Pipe Threads with Pre-Applied Sealant

NOTES

•Fittings meet SAE and DOT FMVSS 571.106 Air Brake Performance Specifications.
•Non-stock items and special parts are available on a quotation basis.
•Configurations and dimensions are subject to change without notice.
