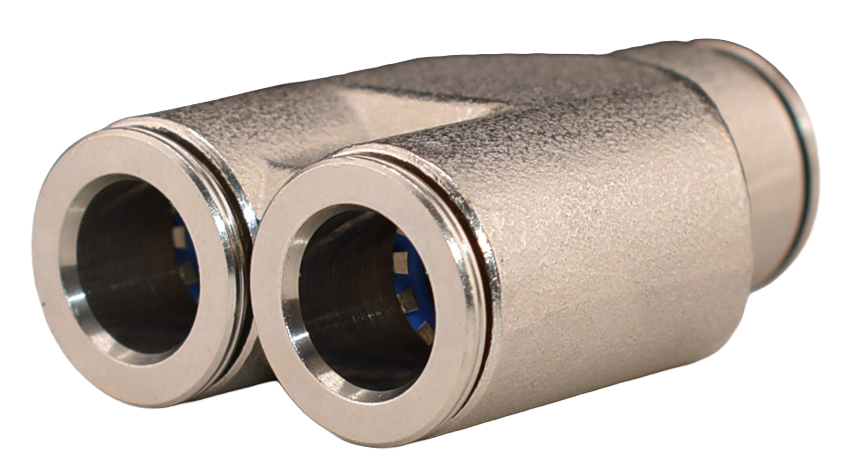

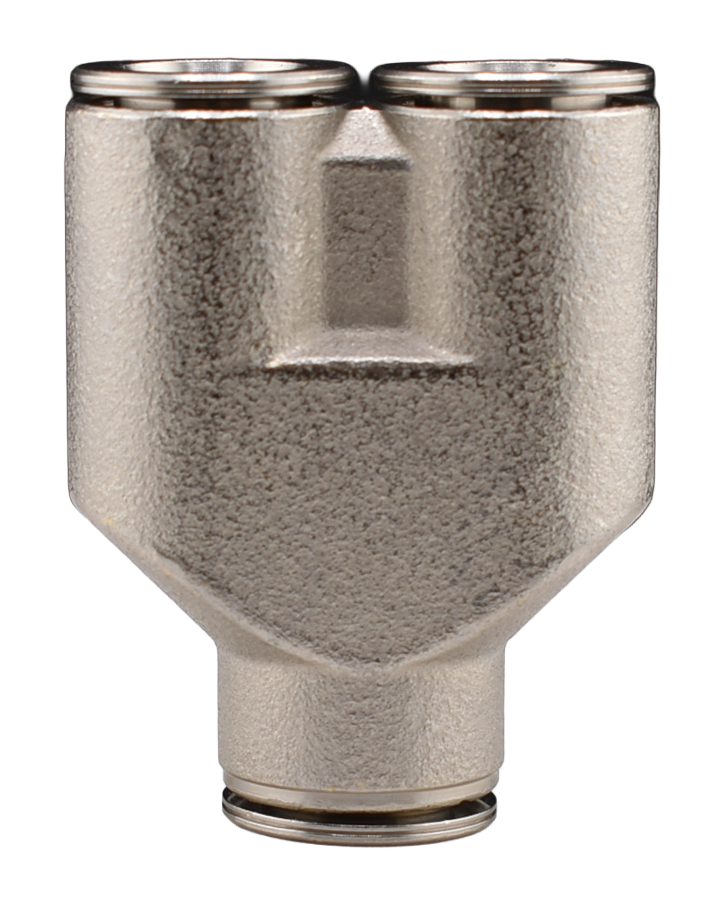

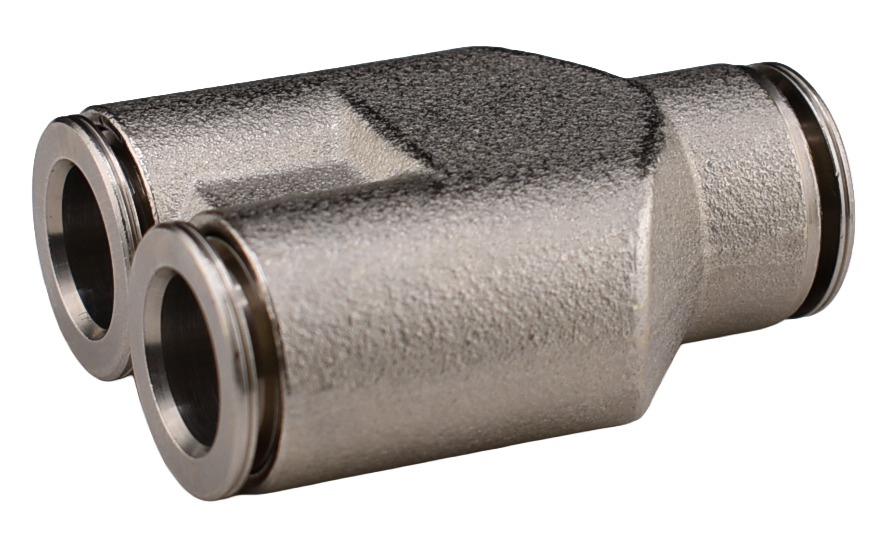

Product Description

• Body/Release Ring: Brass UNI EN 12164 CW614N - UNI EN 12165 CW617N Nickel Plated
• Release Ring: Brass UNI EN 12164 CW614N - UNI EN 12165 CW617N Nickel Plated
• Holding Ring: POM
• Release Ring: Brass UNI EN 12164 CW614N - UNI EN 12165 CW617N Nickel Plated
• Holding Ring: POM
• Gripping ring: Stainless Steel AISI 301
• Protection Ring: POM
• Seals: NBR
APPLICATIONS• Recommended tubing: PA11, PA12, PA6, Polyethylene PE, Polyurethane PU (98 Shore A).
• Acceptable Tolerances on the tubing: +/– 0,07 mm up to Ø 3/8”, +/– 0,1 mm Ø 1/2”.
• Application fields: Pneumatic circuits.
RANGES• Temperature Range: -4° to 176° F.
• Pressure Range: Max 290 PSI
• Pressure Range: Max 290 PSI
• REACH / ROHS Compliant
• Silicone Free
To Connect Fitting & Tubing:1. Cut tubing squarely–using a tube cutter.
2. Make sure mating ports are free of any debris.
3. Insert the tubing past the O-Ring until the tubing bottoms out against the tube stop.
4. Check your connection by pulling on the tubing to ensure tubing is fully inserted.
2. Make sure mating ports are free of any debris.
3. Insert the tubing past the O-Ring until the tubing bottoms out against the tube stop.
4. Check your connection by pulling on the tubing to ensure tubing is fully inserted.
To Disconnect Fitting & Tubing:
1. Press and hold the collet against the fitting body.
2. Pull the tubing out of fitting.
1. Press and hold the collet against the fitting body.
2. Pull the tubing out of fitting.

Pipe Thread Assembly:Straight Fittings:
1. Hand Tighten
2. 1/8” to 1/2”: Wrench Tight 2 Full 360° Turns
1/2” & Above: 1 1/2” Full Turns
1. Hand Tighten
2. 1/8” to 1/2”: Wrench Tight 2 Full 360° Turns
1/2” & Above: 1 1/2” Full Turns
Shaped Fittings:
1. Hand Tighten
2. Wrench Tight 1 to 1 1⁄2” Full 360° Turns
*For NPTF Pipe Threads with Pre-Applied Sealant
NOTES• Fittings are electrolytic nickel-plated.
• Non-stock items and special parts are available on a quotation basis.
• Configurations and dimensions are subject to change without notice.
• Non-stock items and special parts are available on a quotation basis.
• Configurations and dimensions are subject to change without notice.
