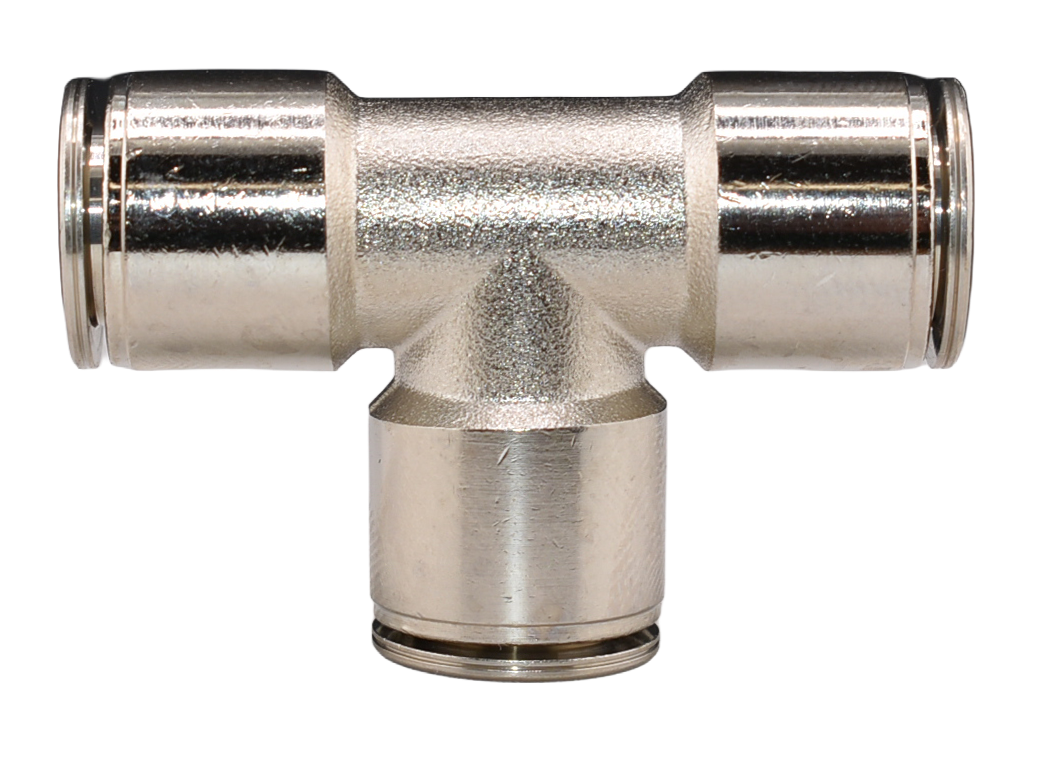

Product Description
CONSTRUCTION
• Release Ring: Brass UNI EN 12164 CW614N - UNI EN 12165 CW617N Nickel Plated
• Holding Ring: POM
APPLICATIONS
RANGES
• Pressure Range: Max 290 PSI
To Connect Fitting & Tubing:
1. Cut tubing squarely–using a tube cutter.
2. Make sure mating ports are free of any debris.
3. Insert the tubing past the O-Ring until the tubing bottoms out against the tube stop.
4. Check your connection by pulling on the tubing to ensure tubing is fully inserted.
To Disconnect Fitting & Tubing:
1. Press and hold the collet against the fitting body.
2. Pull the tubing out of fitting.

Pipe Thread Assembly:
Straight Fittings:
1. Hand Tighten
2. 1/8” to 1/2”: Wrench Tight 2 Full 360° Turns
1/2” & Above: 1 1/2” Full Turns
Shaped Fittings:
1. Hand Tighten
2. Wrench Tight 1 to 1 1⁄2” Full 360° Turns
*For NPTF Pipe Threads with Pre-Applied Sealant
NOTES
• Fittings are electrolytic nickel-plated.
• Non-stock items and special parts are available on a quotation basis.
• Configurations and dimensions are subject to change without notice.
WARNING: Products offered by Robo-Fit, Inc. can expose you to chemicals such as lead, a chemical which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
