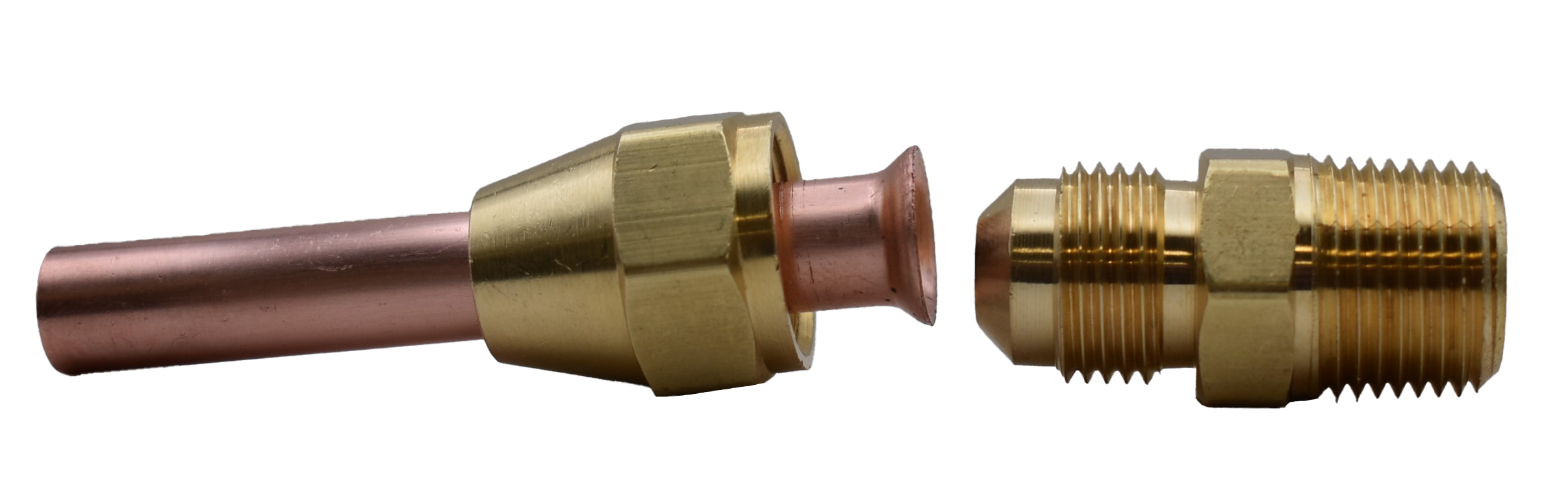

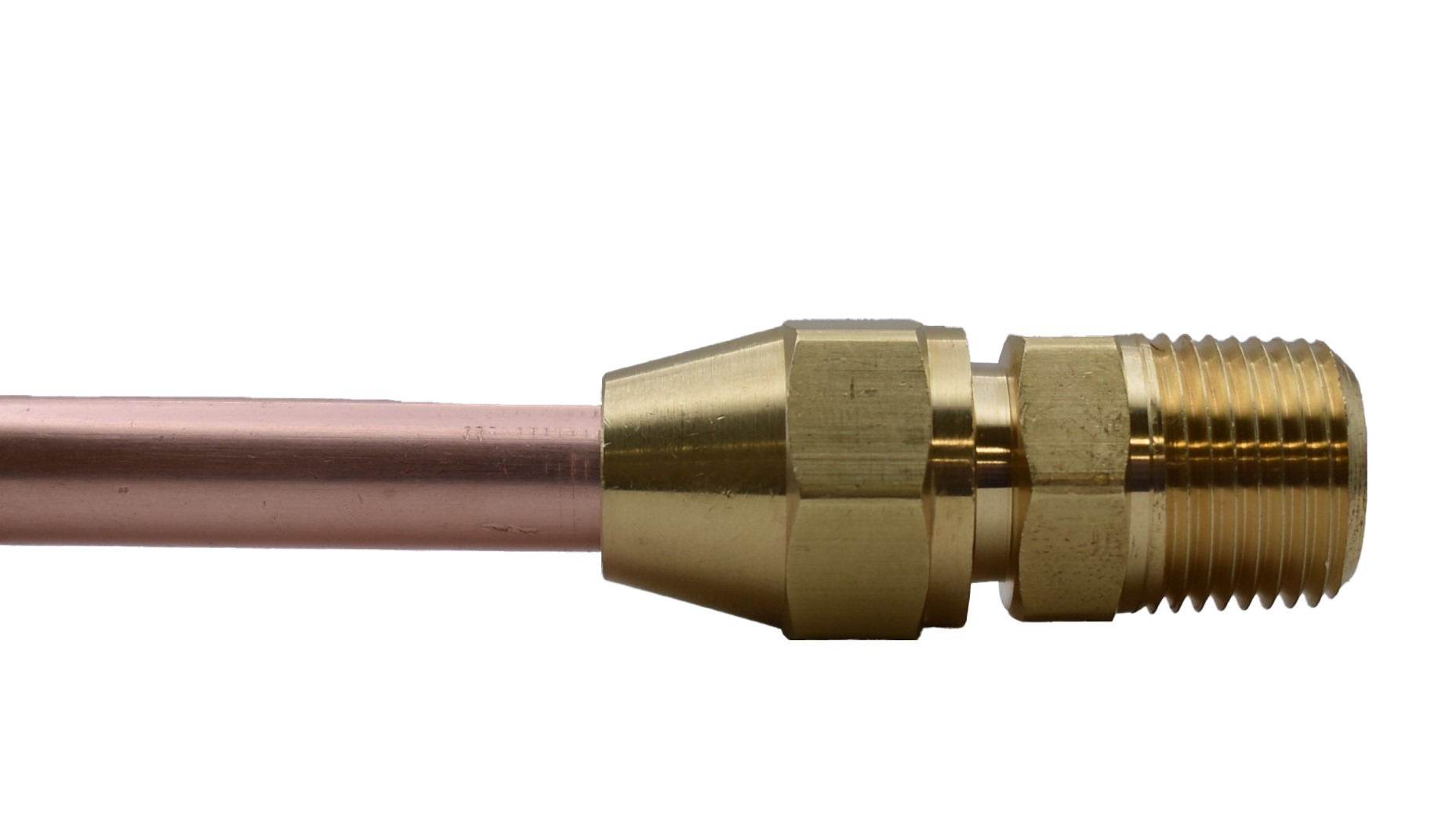

  • NSR4- Brass Fitting, 45° Flare, Short Forged Tube Reducing Nut

    • NSR4, Forged Short Reducing Nut

    Write a Review

    Product Description

    star-icon.pngCONSTRUCTION
    CA377 Brass

    check1.pngAPPLICATIONS
    Compatible with copper, brass, aluminum and steel hydraulic tubing that can be flared

    gauge1.pngRANGES
    Temperature Range: -65° to +250° F.
    Pressure Range: Maximum working pressure (PSI) depends on the tubing material, O.D. wall thickness and fitting.

    Flare Fitting Assembly:
    1. Make sure the tubing is cut squarely with a tube cutter. After cutting, make sure the tube is clean and free of burrs.
    2. Move the flare nut over of the tubing.
    3. Flare the end of the tubing with a flaring tool.
    4. Screw the nut and the connecting fitting together hand tight. Then tighten with a wrench 1/4 to 1/2 turn past hand-tight. There should be a metal to metal seal.



    ***This product is NOT intended for potable water applications***



    warning-exclamation-triangle-hi.png  WARNING: Products offered by Robo-Fit, Inc. can expose you to chemicals such as lead, a chemical which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov

    Other Details

    Warranty Coverage Robo-Fit warrants its products to be free from defects in material and workmanship, limited to the replacement or repair of defective products returned within 30 days after receipt of goods, subject to the terms below. This warranty applies only to products used under normal operating conditions and does not cover: Normal wear and tear Misuse, abuse, or improper installation Unauthorized modifications or third-party repairs Damage caused by external factors beyond Robo-Fit’s control
